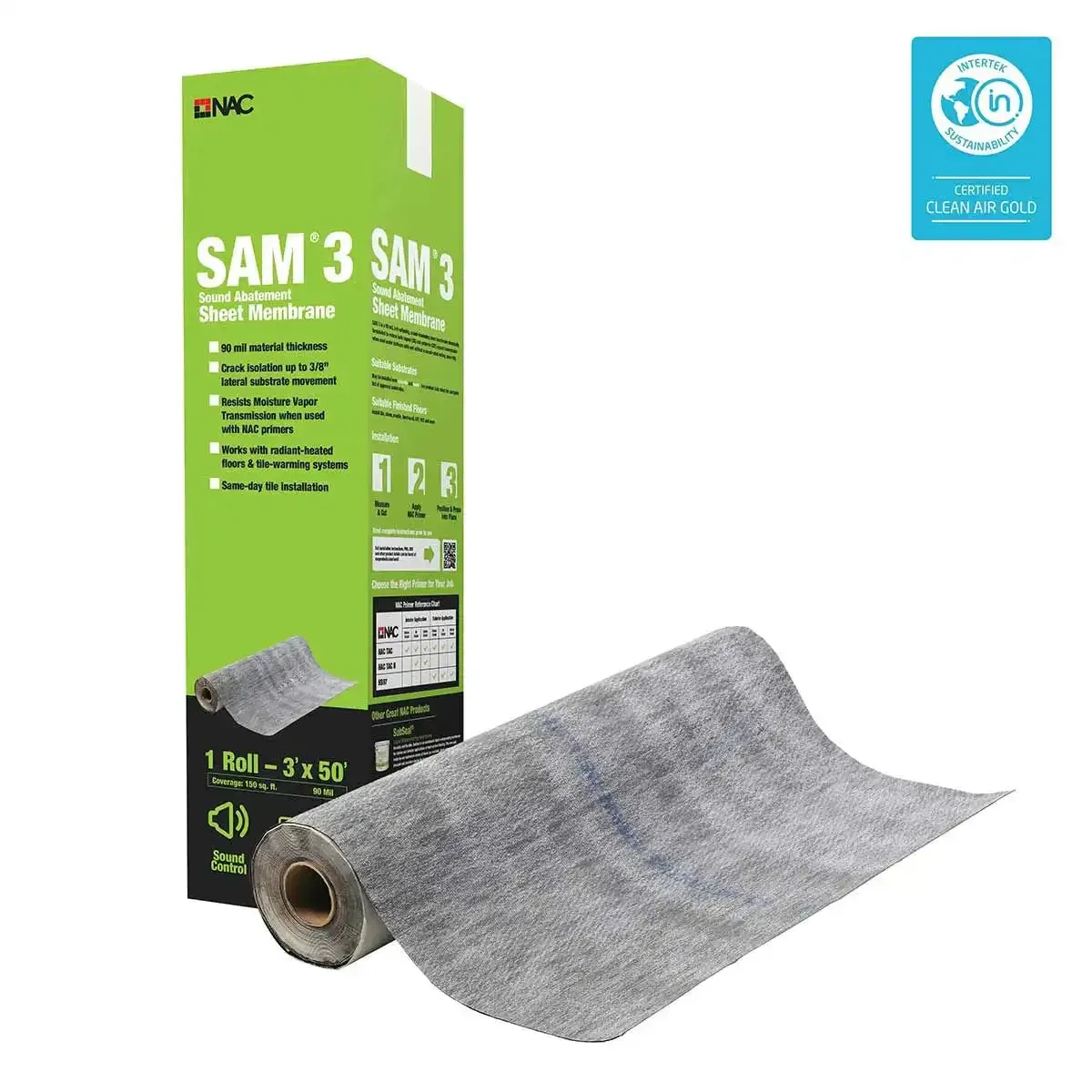

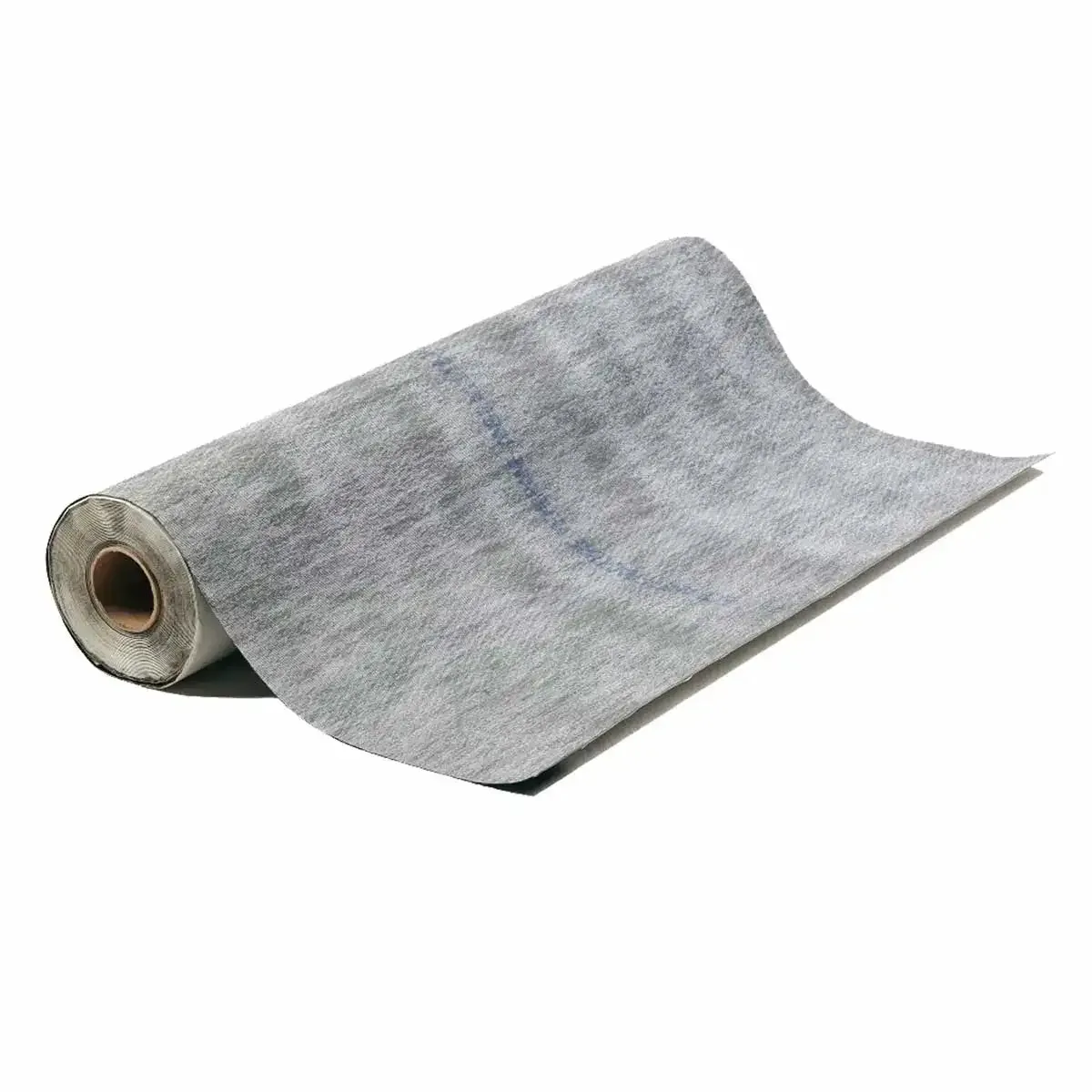

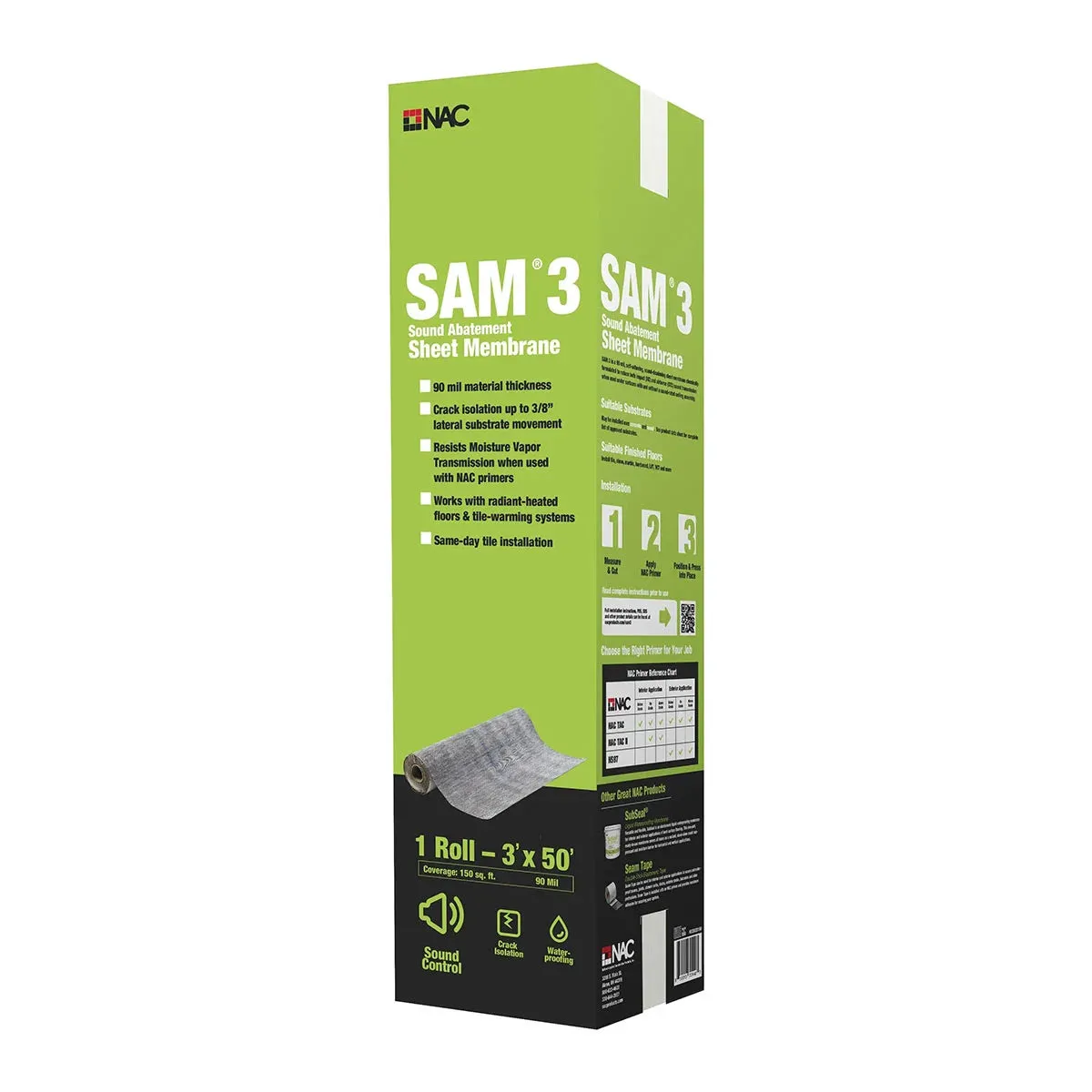

NAC SAM 3 Sound Abatement/Crack Isolation Membrane (150 SF/Roll)

SAM-3 is a 90 mil thick (1/8") sound-deadening sheet membrane designed to reduce airborne (STC) and impact (IIC) sound transmission in applications with or without a sound-rated ceiling assembly (SRCA). SAM3 is an ideal solution for applications requiring integrated sound reduction with a low-profile installation, such as apartments, condominiums, classrooms, multi-family housing, hotels, high-rise office buildings, media rooms, children’s play areas, and other areas needing sound reduction

Features

• Suitable for interior and exterior use
• Meets ANSI A118.10, A118.12, A118.13
• Protects against reflective cracking and delamination
• Independent Sound Tested IIC = 70 min STC=67 min
• Suitable for interior and exterior use
• Resists Moisture Vapor (MVT) 10#/1000SF/24HRS when used with NAC TAC or NS97 Primer or 7#/1000SF/24HRS when used with NAC TAC II Primer

Technical Specifications

• A low-profile membrane is a moisture barrier and provides crack isolation up to 3/8”.
• Safely covers asbestos flooring and provides an effective barrier against radon and mold
• Total roll weight 82 lbs
• Eliminates the need to cut tile to meet control/cold joints
• No need to remove old floors or recess new ones
• Roll Size: 3 ft. x 50 ft. (150 sf)
• Self-bonding, self-seaming, and self-healing formula
• Works with radiant-heated floors and tile-warming systems
