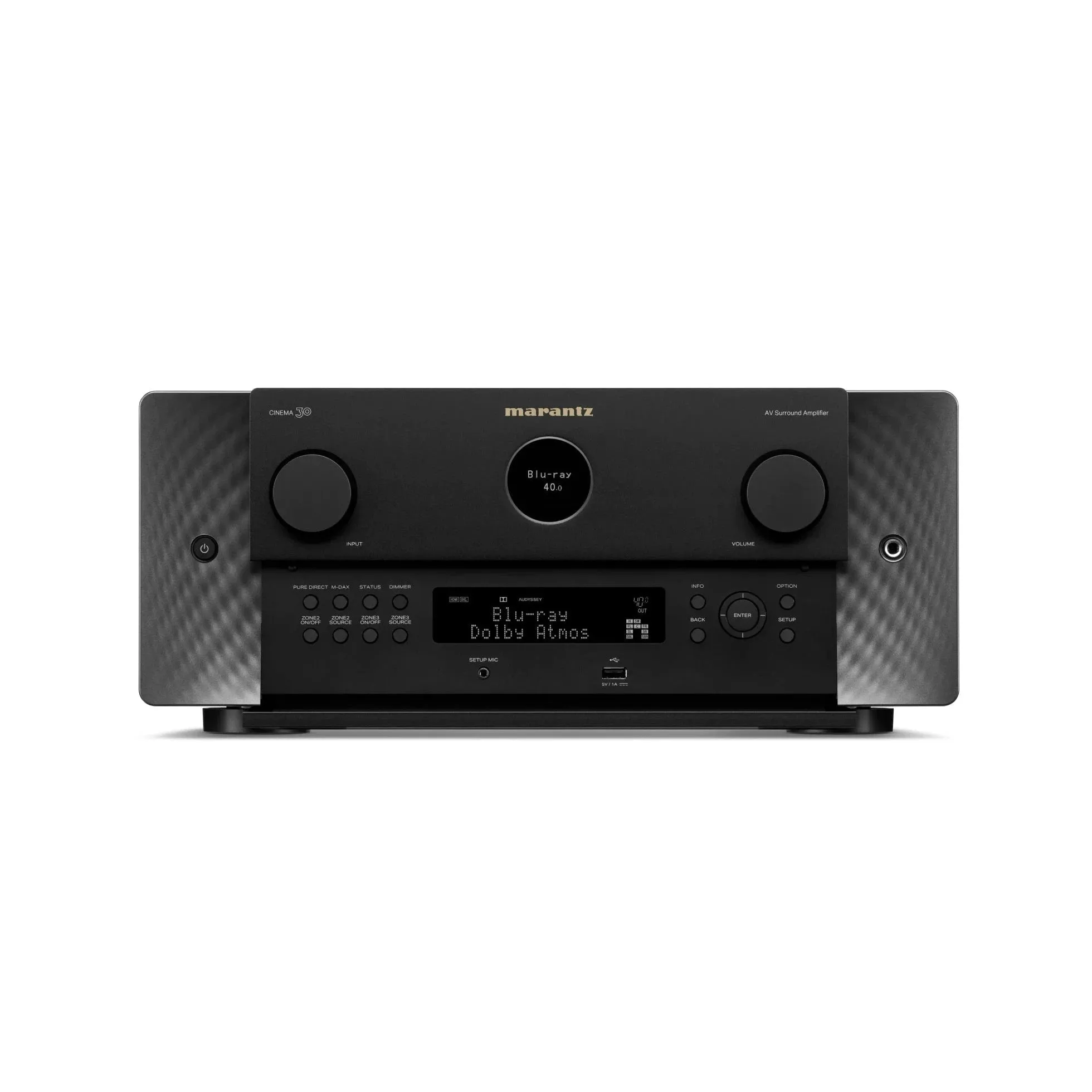

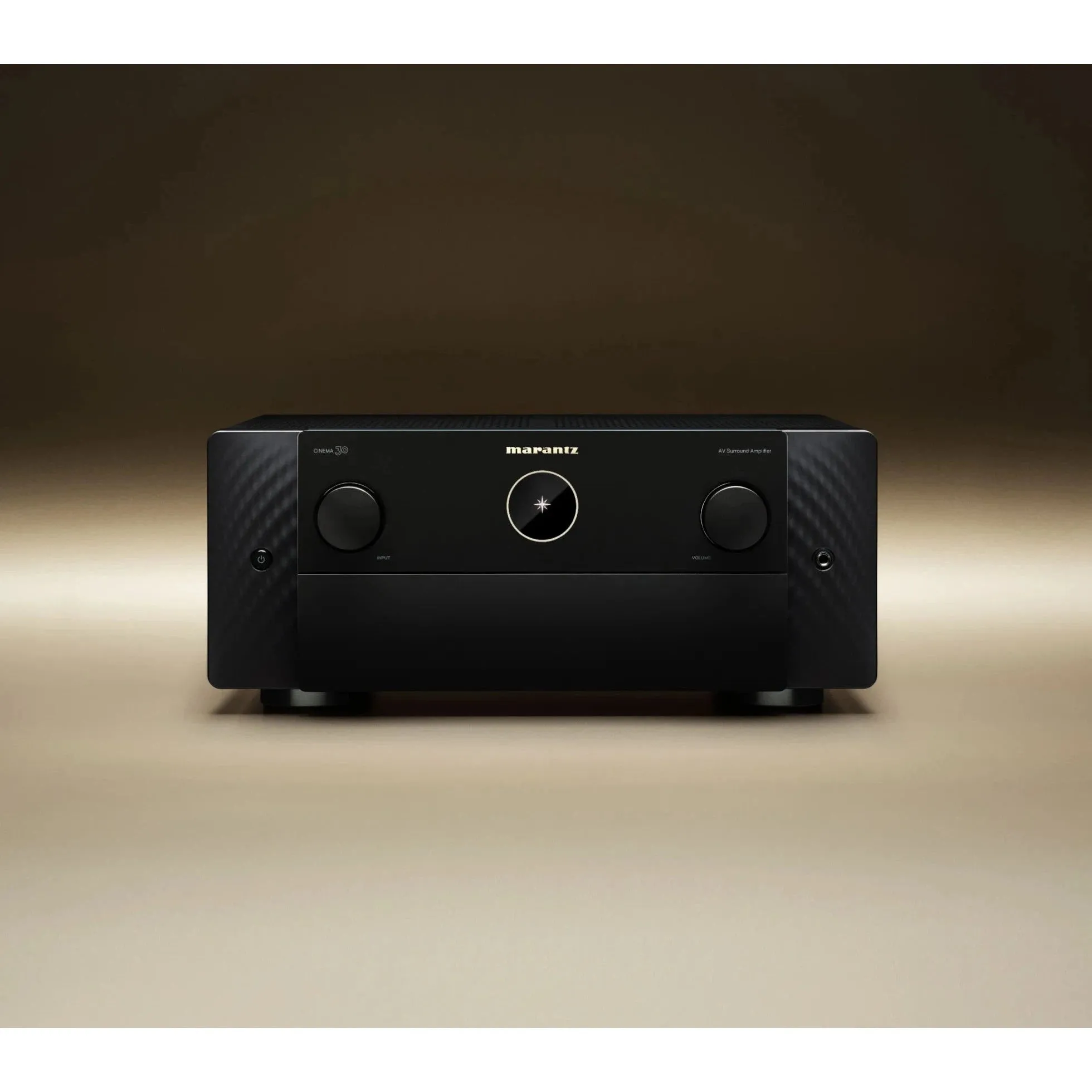

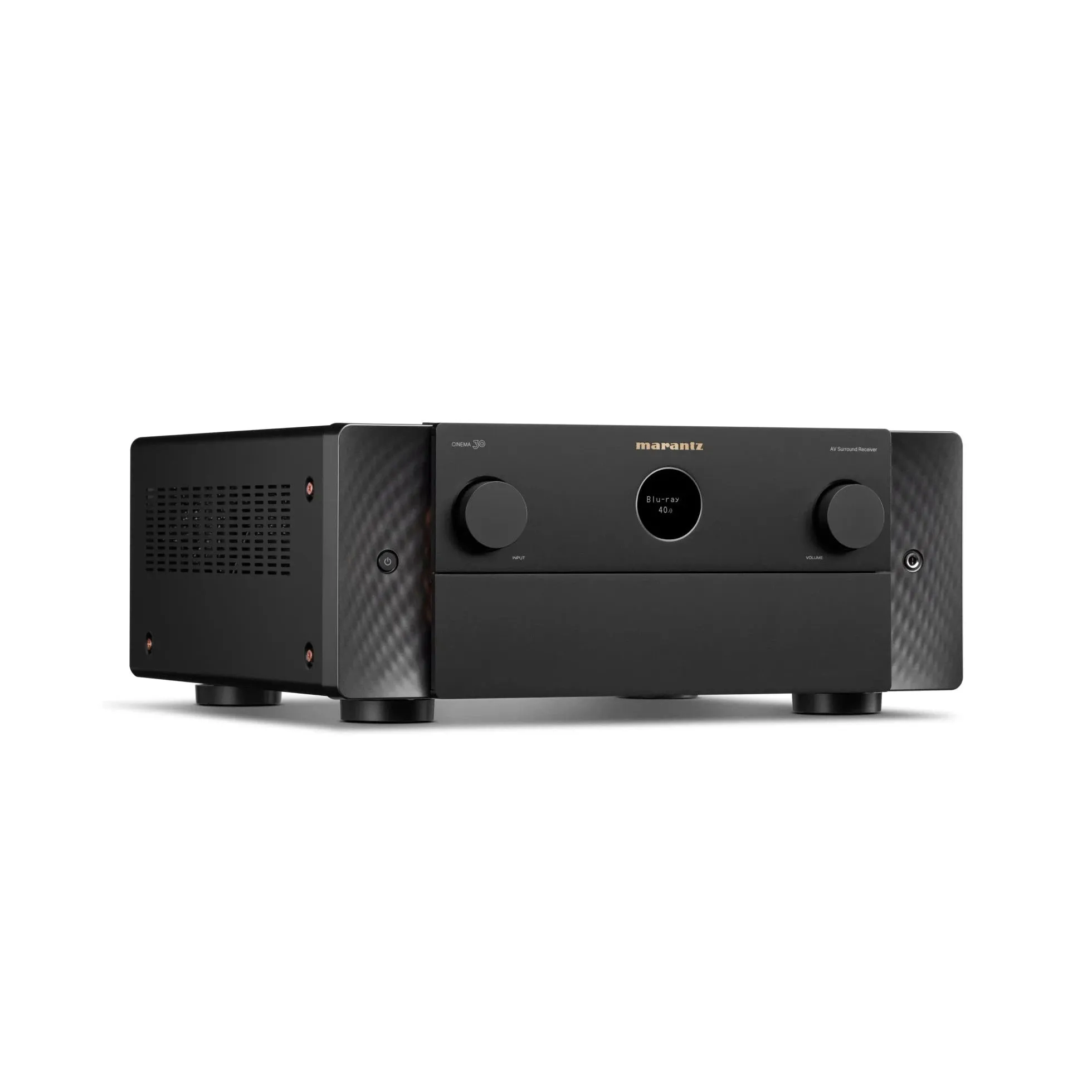

REFERENCE 11.4 CHANNEL AV RECEIVER WITH 140W, 8K AND 7 HDMI INPUTS
Engineered with proprietary technology and crafted with premium materials for timeless style, CINEMA 30 redefines cinematic sound for superior home theatre systems.
Listen and watch differently with the new Marantz CINEMA series. With artisanal craftsmanship, inspired design, and 70 years of innovation. This is cinematic sound, redefined. That means sound that’s better than the theatres, to reveal entertainment the way it’s meant to be heard. Bring home the sound of cinema.
Sound For What You See
Features:
- High Power & Low Distortion - Each channel is rated at 140W with 0.05% THD, making both powerful dynamics and subtle detail a reality.
- 11 Channels & Countless Configurations - Though 11 amplifier channels are built in, CINEMA 30 can process up to 13.4 channels, making the perfect speaker layout for your room easy to achieve.
- No Compromise Engineering - HiFi performance technologies like HDAM SA-2 and more elevate the CINEMA 30 to performance levels seldom found in an AVR.
- Sound Master Tuned & Calibrated For You - Powerful calibration and tuning tools are included, enabling you to get the best performance from your system.
Highly Customisable
Thoughtfully curated connectivity options, myriad speaker configurations, and room calibration capability allow you to make CINEMA 30 your own.
Achieve the Best Sound Possible
Dirac Live is a professional room acoustic solution that enables you to optimise your sound systems and reduce unwanted effects introduced by the room. Utilizing purpose-built audio algorithms, this world-class software is now available as an upgrade with CINEMA 30.
Timeless Yet Modern Style
Excellence is heard and seen. CINEMA 30 is meticulously crafted in Japan with authentic materials in a modern style, befitting its rich heritage and stunning performance.
Complete Compatibility
Seven inputs, plus digital, analog, and phono inputs – even analog video plus loudspeaker and pre-amp outputs – ensure connectivity to virtually any components you have.
| Category | Specifications |
|---|---|
| Power Amplification | |
| Number of Powered Channels | 11 |
| Power Output (8 ohm) | 140 W (20 Hz - 20 kHz, 0.05% 2ch Drive) |
| Power Output (6 ohm, 1 kHz, 0.7%) | 175 W (2ch Drive) |
| Power Output (6 ohm, 1 kHz, 10%) | 250 W (1ch Drive) |
| Amplifier Topology | Class A/B, Discrete, Current Feedback |
| Bi-Amp Drive | Assignable |
| Multichannel Surround | DTS HD Master, DTS:X, DTS:X Pro, etc.; Dolby TrueHD, Dolby Atmos, etc.; Max Processing Channels: 13.4 |

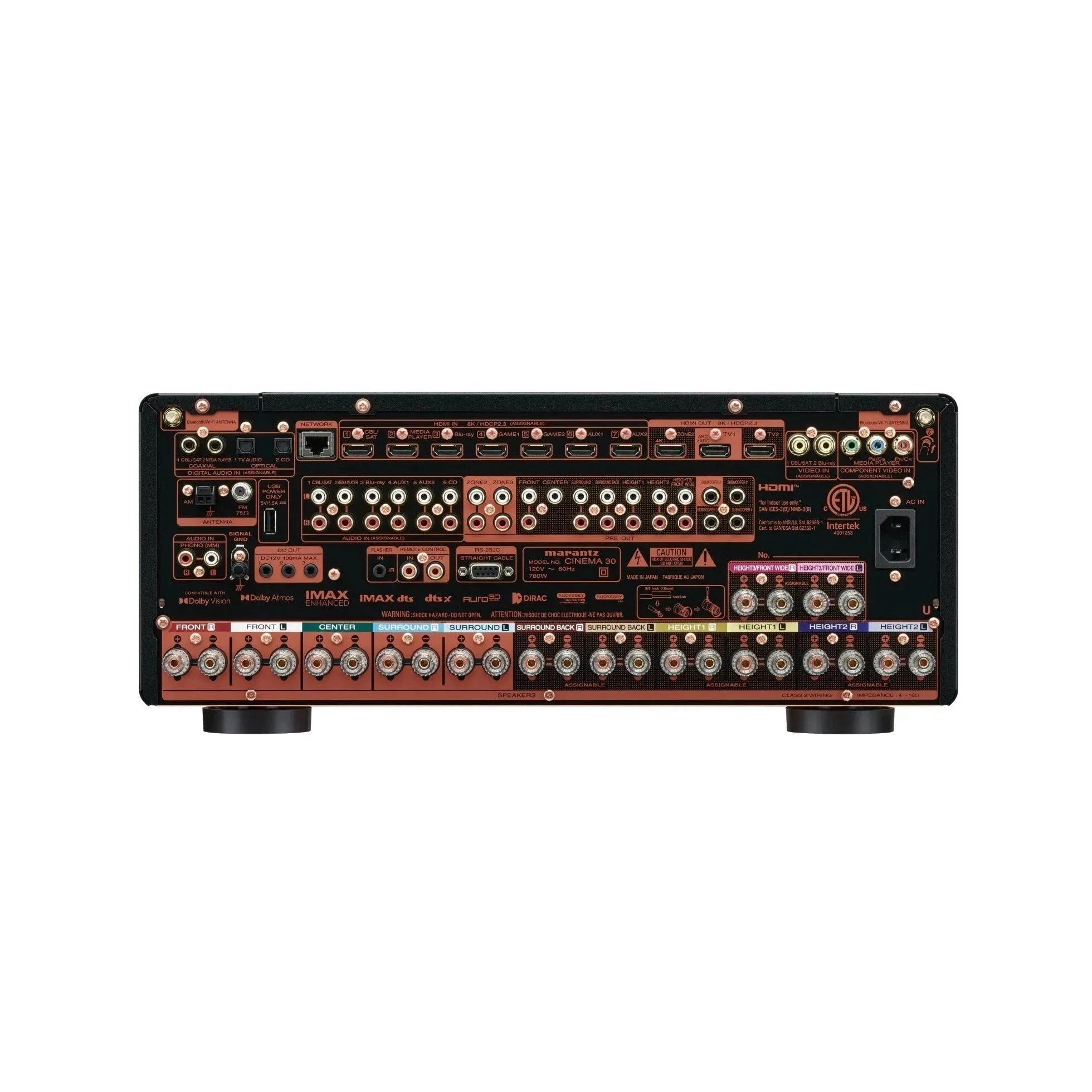

| Inputs/Outputs | Composite In/Out: 2/0, HDMI In/Out: 7/3, Analog In: 3, Digital In: Optical/Coaxial: 2/2, etc. |
| HDMI Features | Total Inputs: 7 (6 support 8K), HDCP2.3, eARC, HDR formats support, Variable Refresh Rate, etc. |
| Performance Technologies | Copper Plated Chassis, Toroidal Transformer, HDAM, Pure Direct Mode, Gold Plated RCA, etc. |
| Acoustic/Room Correction | Audyssey MultEQ XT32, Dirac Live Support (upgradeable), Variable Crossover, Bass Sync, etc. |
| Music File Support | MP3, WMA, AAC, FLAC HD, WAV, ALAC, DSD, Gapless Playback for FLAC, WAV, ALAC, DSD |
| Services | , AirPlay2, Internet Radio, Spotify Connect, Amazon Music HD, TIDAL, Deezer, etc. |
| Network Connectivity | Ethernet, Wi-Fi, , Bluetooth Re-transmit for |
| Smart Home Integration | Voice Assistant Compatibility, AVR App, HEOS Multi-Room Integrated, Zone Audio Source/Output options |
| Others | HDMI Diagnostics, Front Display, GUI Languages: 3, Setup Assistant, ECO Mode, Power Consumption details, etc. |
| General | Available Colors: Black/Silver-Gold, Metal Front Panel, Remote Control RC-051SR, Power Consumption: 780 W, Standby Consumption: 0.2 W, Dimensions: 442mm x 384mm x 109mm, Weight: 8.7 kg |
| Box Contents | Main unit, Remote control, Batteries, AM/FM Antennas, Wire Labels, Quick Start Guide, Audyssey Microphone, Cardboard Microphone Stand, 2 External Detachable Antennas, AC Cord |
