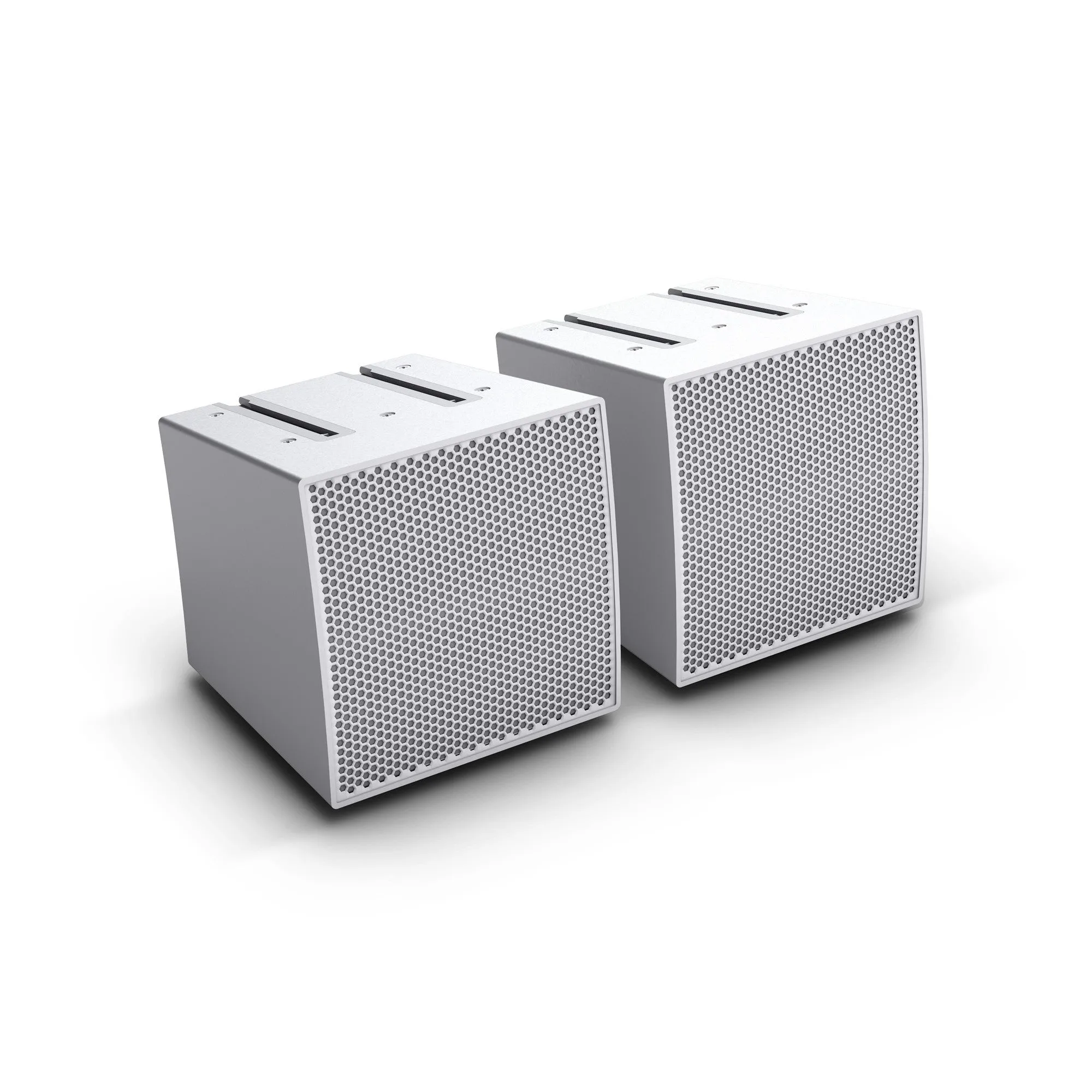

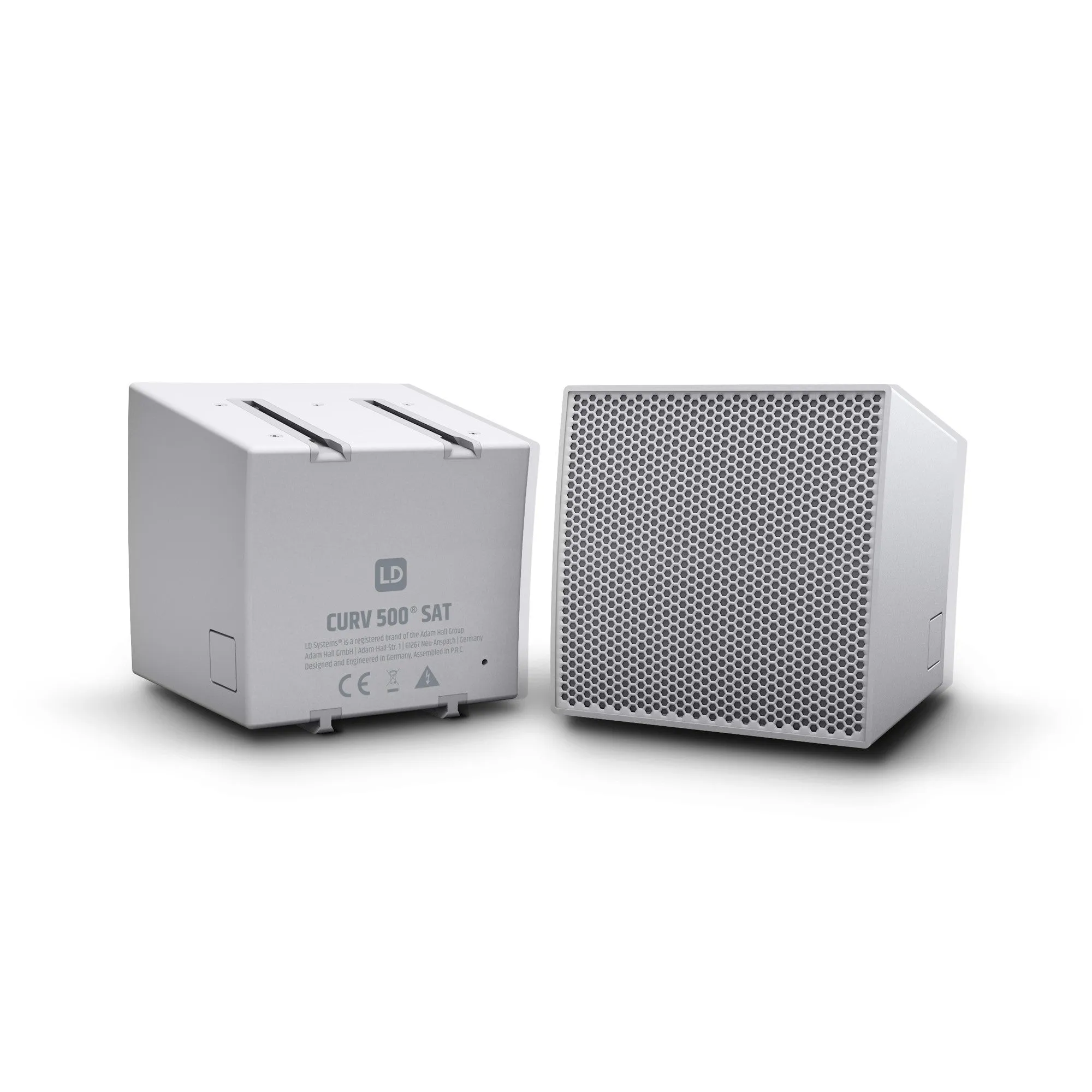

This accessory package is suitable for extension or addition to an existing CURV 500. These 12 x 12 cm satellites made with white die-cast aluminium produce excellent sound. This is due to a 4-inch woofer and three 1-inch tweeters. Thanks to the LD Systems-developed WaveAhead technology, whereby the tweeters are connected vertically before the high-performance full-range speakers, a perfect sound mix and distribution are achieved. The 110 degrees horizontal dispersion angle is very wide and is limited vertically to 10 degrees per satellite - which reduces reflections on ceilings and floors. A passive crossover at 2500 Hz ensures an optimum allocation of the frequency spectrum. The patented SmartLink coupling mechanism allows you to wirelessly connect up to four array satellites to a unit in seconds. Robust metal grilles with an acoustic material scrim protect the robust satellites’ drivers, each with 16 ohms impedance and a weight of 1.73 kg. The matt-black powder-coated surface is resilient and gives the satellite an elegant look. An M3 screw connection for the safety cable is available for permanent installations.
Features
- Bundle consisting of two array satellites
- Compact cabinet made of white die-cast aluminium, rugged and resilient
- A single 4-inch midrange driver and three 1-inch high-frequency drivers with patented WaveAhead Technology deliver excellent sound
- SmartLink System allows for cable-free assembly of up to four array satellites
- 16 ohm impedance per satellite
Specifications
- Product type - PA Complete Systems Accessories
- Type - Array Satellites
- Midrange dimensions - 1 x 4 "
- Tweeter dimensions - 3 x 1 "
- Load rating (RMS) - 40 W
- Peak power - 80 W
- Speakers per amplifier channel (DSP44/45K) - 8x1, 4x2, 2x3, 2x4, 5, 6 (LOW Z)
- Dispersion - 110° horizontal, vertical (each satellite) 10 °
- Impedance - 16 Ohm(s)
- SPL (1W/1m) - 88 dB
- Max. SPL - 104 dB
- Material - Die-cast aluminium
- Surface - Powder coated
- Color - White
- Features - internal crossover, M3 thread for safety rope for installations, metal grille, SmartLink System, WaveAhead Technology
- Width - 122 mm
- Height - 122 mm
- Depth - 122 mm
- Weight (pair) - 3.44 kg
