Highlights

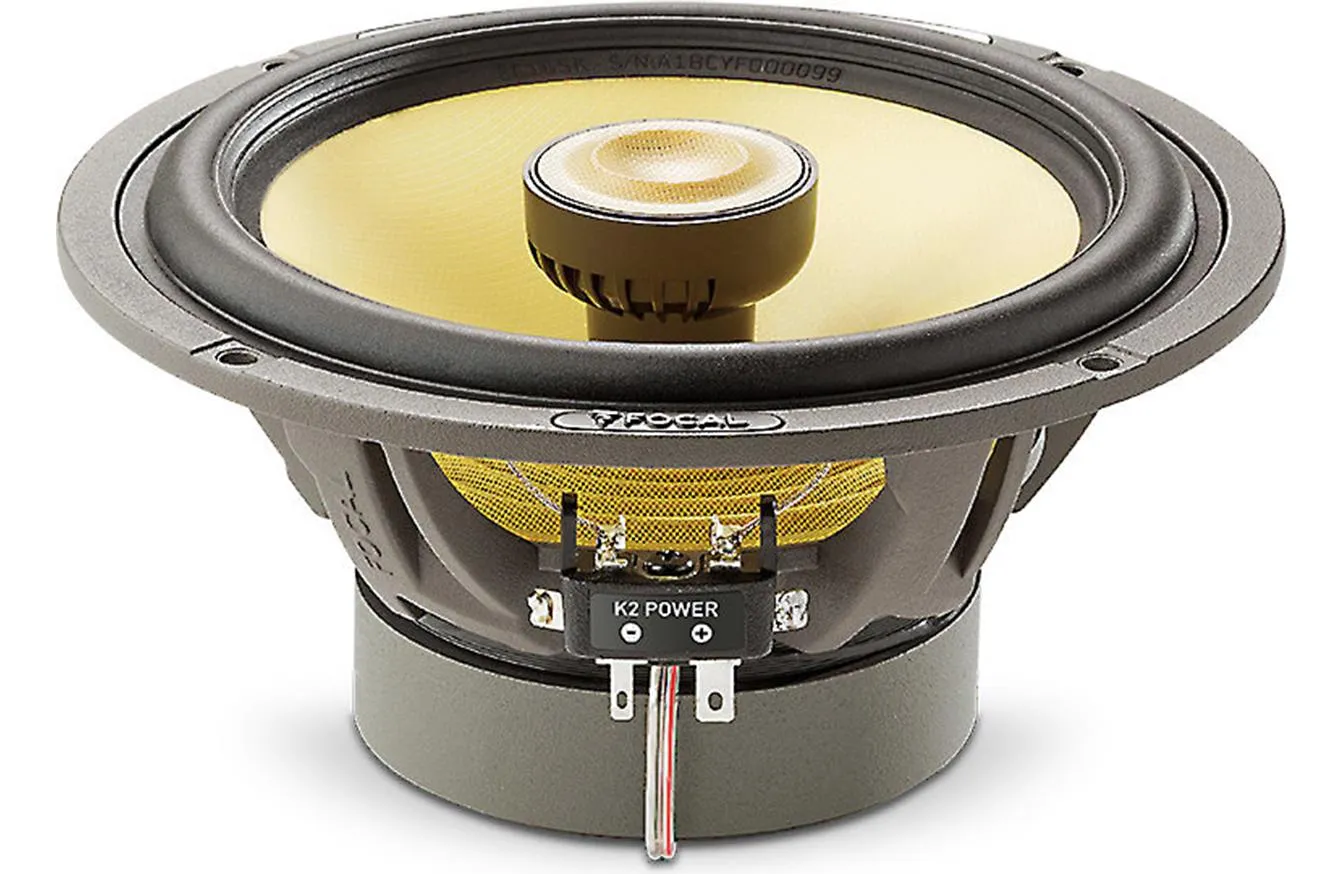

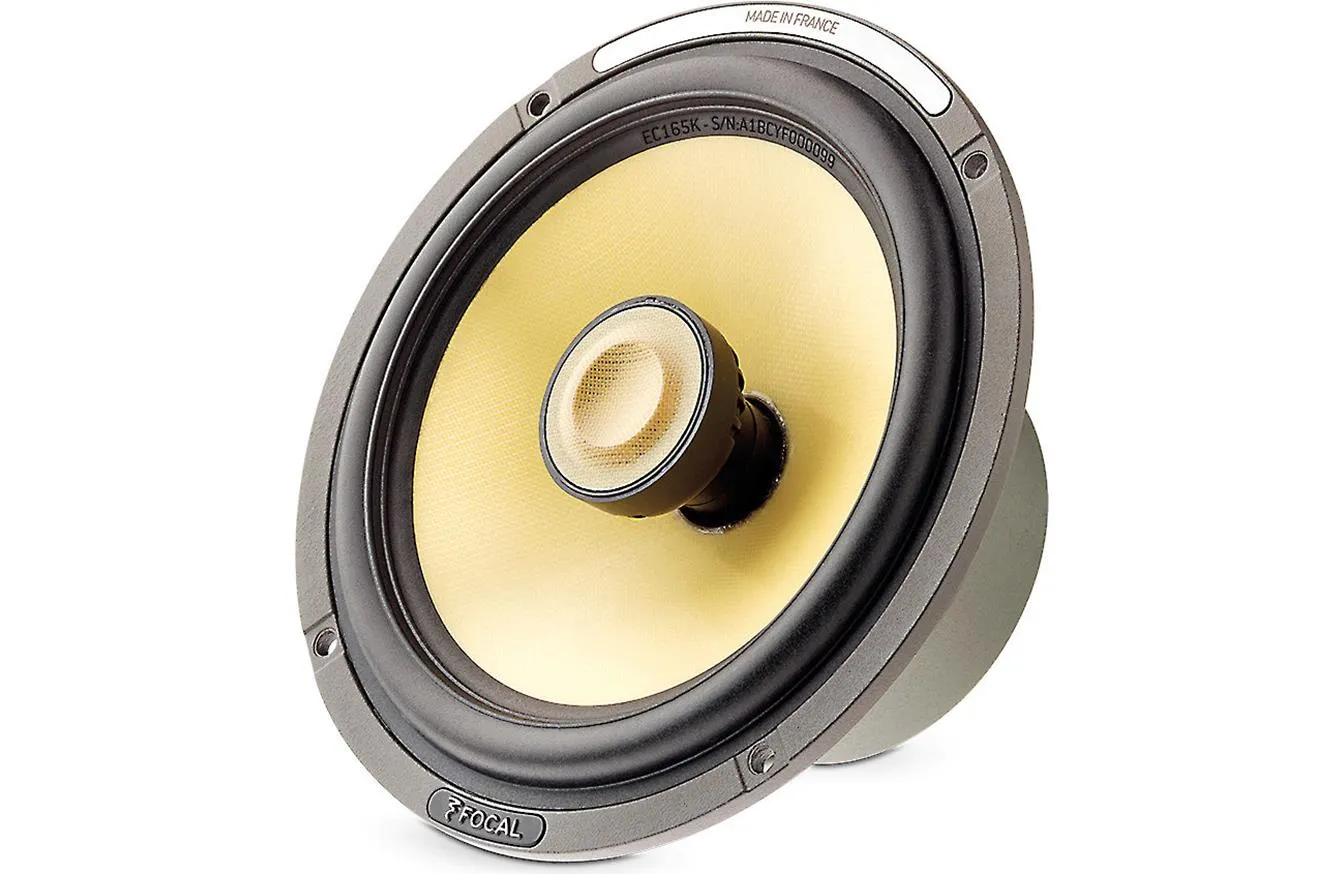

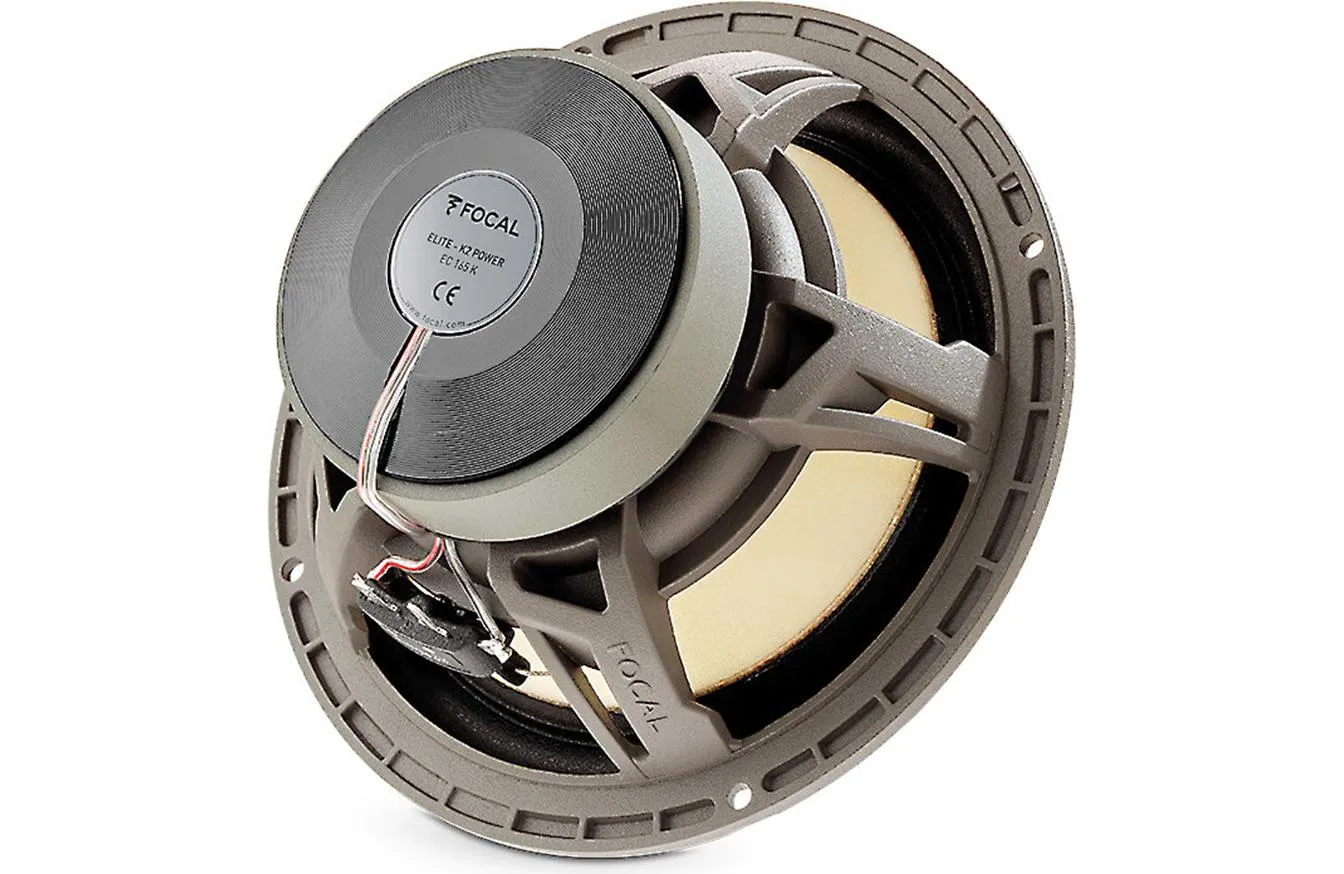

The EC 165 K kit is composed of two 165 mm (6½") woofers with coaxial tweeters.

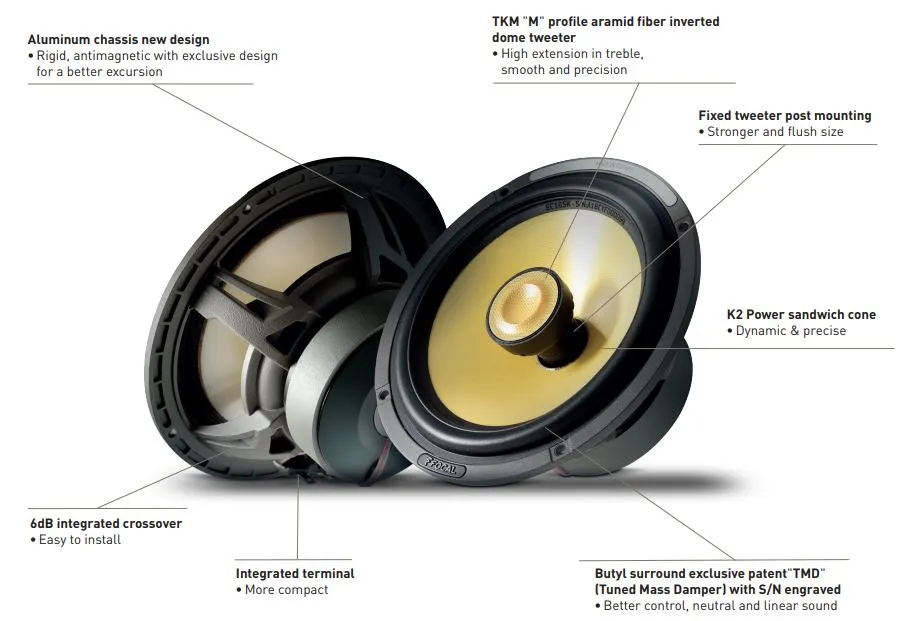

Like all speaker drivers in the K2 Power line, the coaxial woofers of the EC 165 K kit are also equipped with Kevlar® cones. These cones are endowed with all the ideal qualities: lightness, rigidity and excellent damping, to deliver dynamic sound and perfect definition. The cones are fixed to the frame using TMD suspension, whose exclusive design removes unwanted resonances and reduces the effects of distortion.

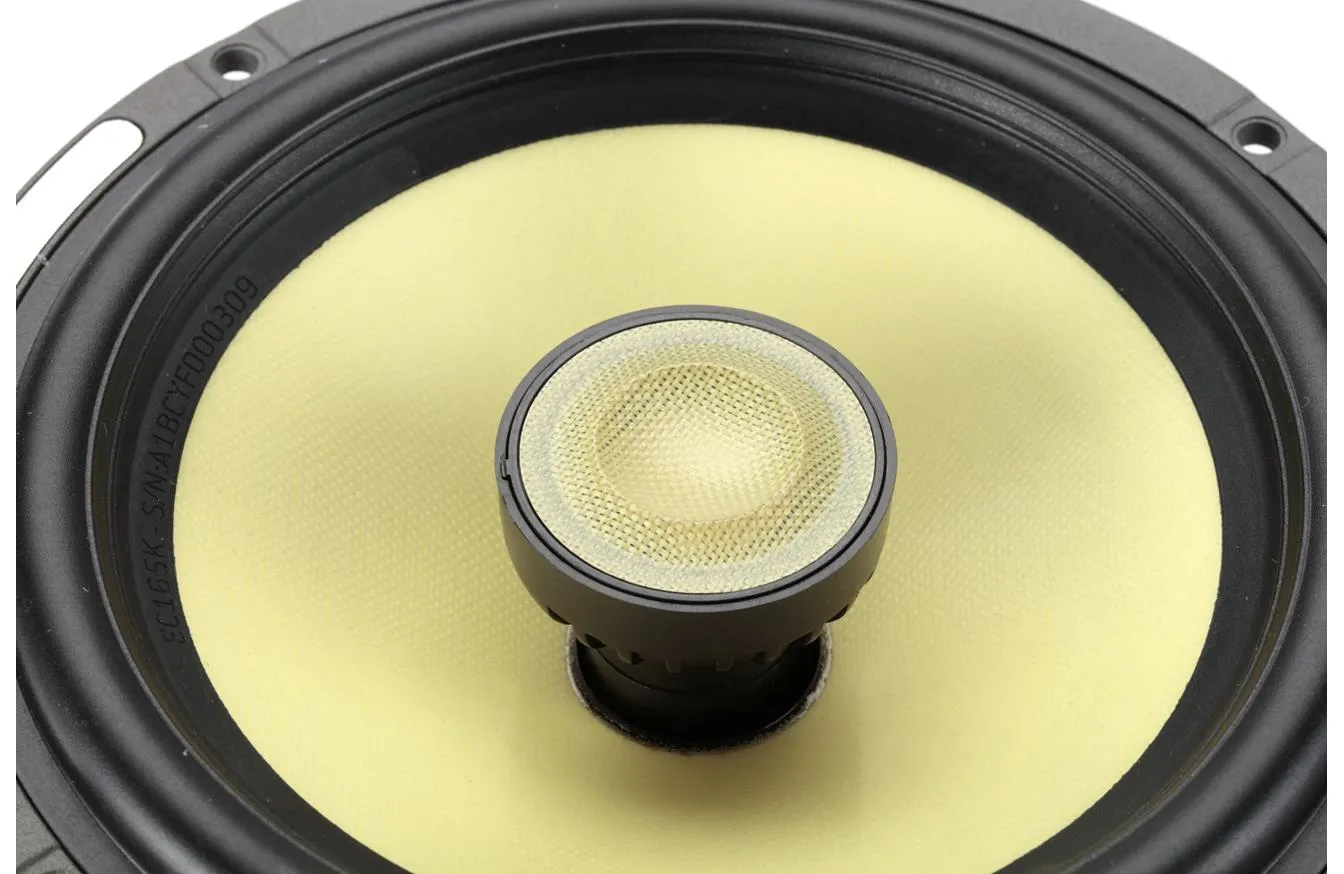

The two TKM inverted dome tweeters are composed of aramid fibers. Their exclusive “M”-shaped profile is designed to control deformation of the dome, and to reproduce with precision smoothly high frequencies up to 22 kHz. The frames have been redesigned to make them more robust and shorter; the depth has been reduced as much as possible: 74 mm (3"). These tweeters are equipped with built-in crossovers.
Features
- Inverted dome "M"-shaped tweeter
- Reinforced tweeter post
- Flush tweeter (compact)
| Speaker Size | 6½" |
| Design | 2-Way |
| Tweeter Design | M-Shaped Inverted Dome |
| Impedance | 4 Ohms |
| Tweeter Composition | Aramid Fiber |
| Woofer Composition | K2 Kevlar Sandwich |
| Woofer Surround | Butyl Rubber |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
Specifications
| Sensitivity (1W at 1 meter) | 90 |
| Sensitivity at 2.83 volts | 93 |
| Frequency Response | 60 - 22k Hz |
| Maximum RMS Wattage | 80 |
| Peak Power Handling (Watts) | 160 |
| Top-mount Depth | 2 15/16" |
| Bottom-mount Depth | 3 1/8" |
| Cutout Diameter | 5 5/8" |
| Mounting Height | 0.446" |
- 2-way coaxial kit
- Diameter: 6½"(165mm)
- Voice coil diameter: 1" (25mm)
- Voice coil height: 0 9/16" (15mm)
- Motor: Magnet
- Tweeter: TKM ("M" profile aramid fiber inverted dome)
- Cone: Composite K2 Power "W" sandwich cone
- Surround: Tuned Mass Damper (TMD®)
- Max. power: 160W
- Nom. power: 80W RMS
- Sensitivity (2.83V/1m): 93dB
- Frequency response: 60Hz - 22kHz Impedance: 4 Ω

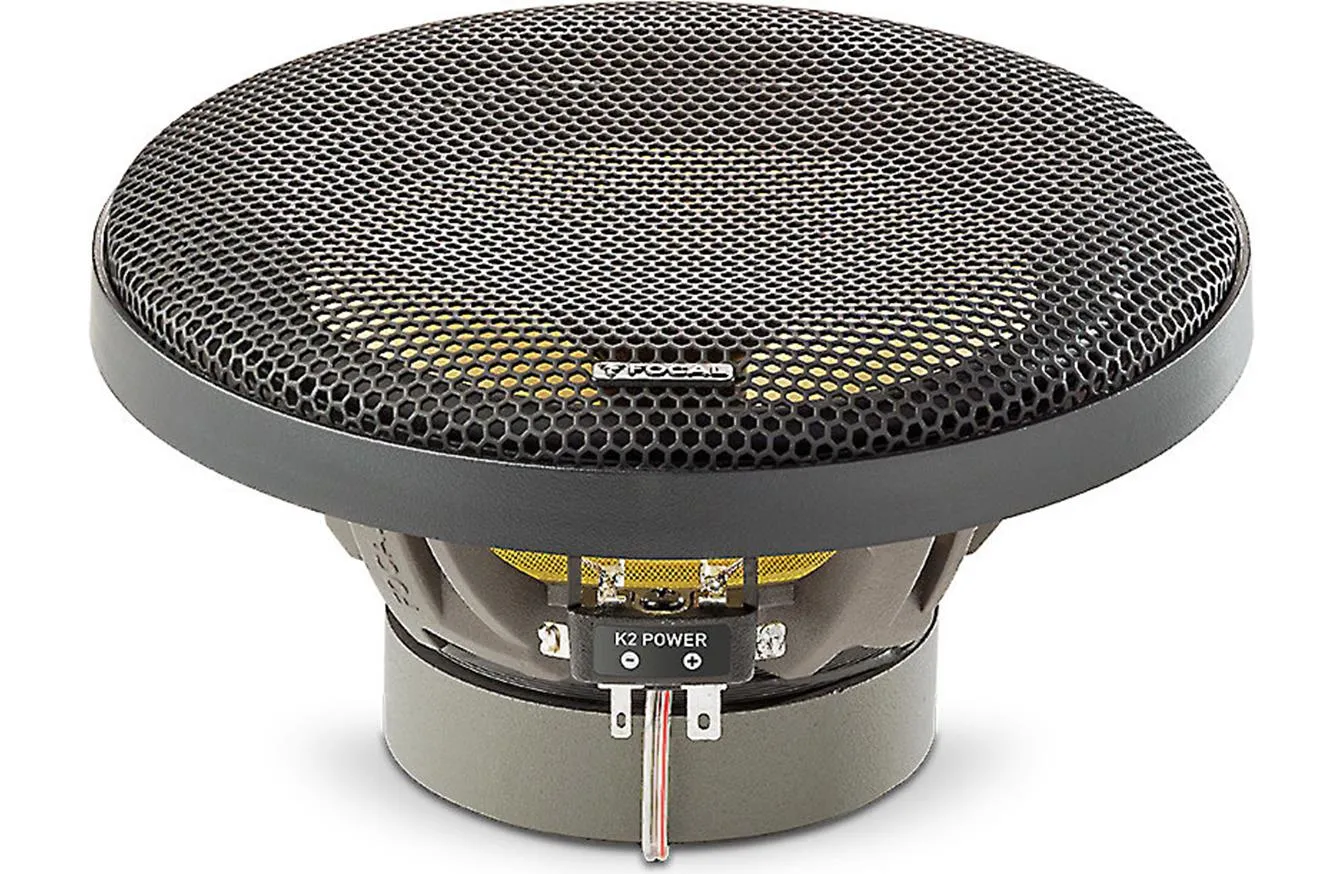

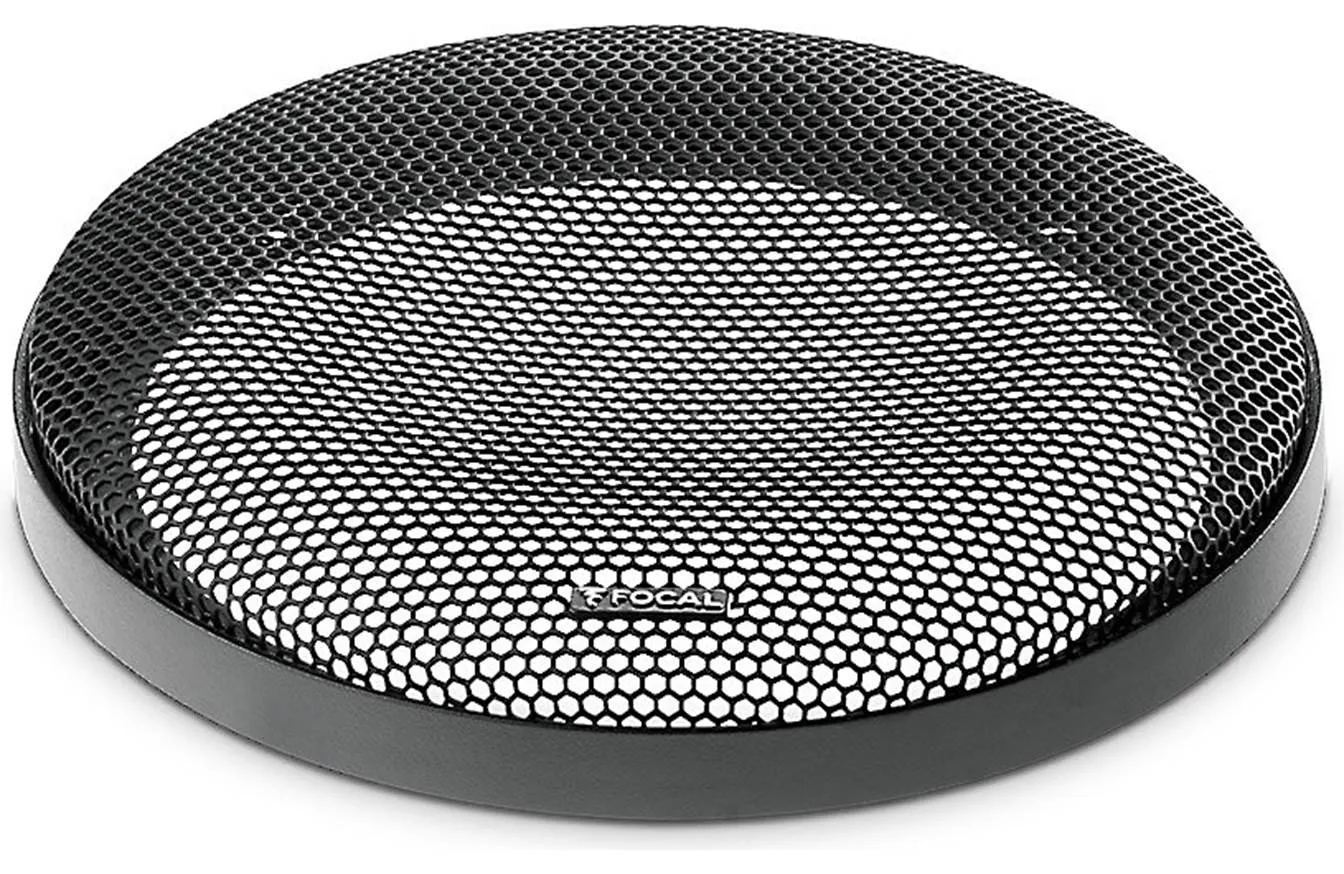

- Accessories: Supplied grilles
